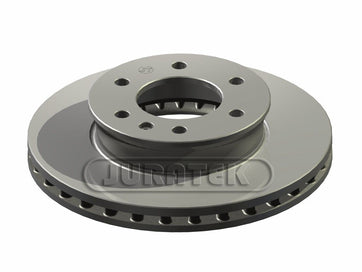

Front Brake Disc for Mercedes-Benz Sprinter 3T 4T 5T VW Crafter Optare Plaxton Sitcar
This premium front axle brake disc delivers exceptional stopping power and durability, featuring a 300 mm outer diameter, 28 mm maximum thickness, 85 mm centering diameter, and 130 mm PCD for a precise and secure fit. Designed with 6 x Ø15 mm holes plus 1 x Ø9.2 mm counterbored hole, it ensures reliable mounting and optimal performance under heavy-duty conditions. Weighing approximately 9.6 kg and fully ECE R90 certified, this disc is engineered for superior heat dissipation and long-lasting braking efficiency. Perfectly compatible with Mercedes-Benz Sprinter (3T, 4T, 5T), VW Crafter, and specialist vehicles from Optare, Plaxton, and Sitcar
-
Function: Brake Disc
-
Placement on Vehicle: Front Axle
-
Dimensions:
-
Outer Diameter: 300mm
-
Minimum Thickness: 25 mm
-
Maximum Disc Thickness: 28 mm
-
Centering Diameter: 85mm
-
Height: 69mm
-
Bolt Hole Circle Diameter (PCD): 130 mm
-
Holes :6 x Ø15mm & 1 x Ø9.2mm counterbore Ø15mm
-
Weight: Approximately 9.6kg
-
ECE R90 Certified
Vehicle Compatibility:
-
MERCEDES-BENZ: SPRINTER 3 tonne, 4 tonne, 5 tonne
-
OPTARE: SOROCO
-
PLAXTON: PROFILE
-
SITCAR: GAMMA SPRINTER, SPRINTER
-
VW: CRAFTER
OE NUMBER:
ALFA ROMEO : 9947106, 9950814
MERCEDES-BENZ:A9064210012, A9064210112, A9064210212, A9074210100, A9104210000, A9104210100, 906420112, 9064210012, 9064210112, 9064210212, 907421000000, 9074210100, 907421010007, 9104210000, 910421000000, 910421000007, 9104210100
VAG: 2E0615301
Cross References: MER137, ADC1640V, DSK2448, SDK6100, NBD5538, PBD8191, PCD18322, BG4032, MDC1771C, BBD4570, DI956432, 27698, ADU174310
