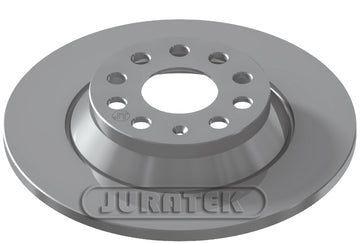

Rear Brake Disc for Audi A3 Q3 Seat Skoda VW Sharan Golf
This ECE R90–certified rear brake disc is engineered for high durability and stable braking performance across a wide range of VAG vehicles, including Audi A3, Q3, TT SEAT Alhambra and Tarraco Škoda Kodiaq and Superb and Volkswagen Arteon, Caddy, Golf, Passat, Sharan, Tiguan, and Touran. Featuring a 300 mm outer diameter, 12 mm maximum thickness, 65 mm centering diameter, 48 mm height, and 112 mm PCD with 9 × Ø15.4 mm holes plus one Ø13.2 mm countersunk hole, it ensures precise fitment and dependable performance.
-
Function: Brake Disc
-
Placement on Vehicle: Rear Axle
-
Dimensions:
-
Outer Diameter: 300mm
-
Minimum Thickness: 10 mm
-
Maximum Disc Thickness: 12 mm
-
Centering Diameter: 65mm
-
Height: 48mm
-
Bolt Hole Circle Diameter (PCD): 112 mm
-
Holes : 9 x Ø15.4mm & 1 x countersunk 13.2mm
-
Weight: Approximately 5.54 kg
-
ECE R90 Certified
Vehicle Compatibility:
-
AUDI: A3, Q3, Q3 Sportback, TT, TT Roadster
-
SEAT: ALHAMBRA,TARRACO
-
SKODA: KODIAQ ,SUPERB
-
VW: ARTEON, CADDY, CADDY CALIFORNIA, GOLF, GOLF ALLTRACK, GOLF VAN, PASSAT, PASSAT ALLTRACK, SHARAN, TIGUAN, TIGUAN ALLSPACE, TOURAN
OE NUMBER:
AUDI: 3Q0615601, 3Q0615601A
CUPRA: 3Q0615601A
SEAT: 3Q0615601, 3Q0615601A
SKODA: 3Q0615601, 3Q0615601A
VW: JZW698601BB, 3Q0615601, 3Q0615601A
Cross References: VAG330, ADC2613, DSK3057, SDK6780, NBD5293, PBD8415, PCD12752, BG4751C, MDC2527, BBD5331, DI957023, 104496, ADV184375
